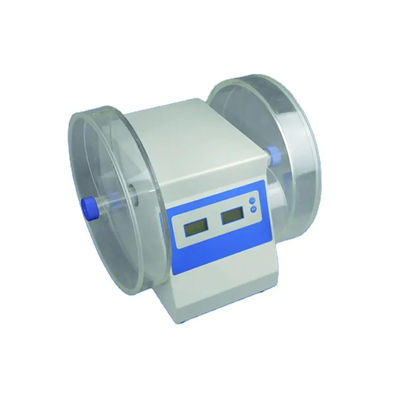

Tablet Friability Tester

Basic Information
Place of Origin: CHINA
Certification: CE ISO
Model Number: CS-1/2/3/4
Minimum Order Quantity: 1 UNITS
Packaging Details: Carton case;Wooden case
Delivery Time: 5-15 work days
Payment Terms: L/C, T/T, Western Union
Product Description

* Automation: auto-test, auto-diagnose, auto-alarm.
* Intelligently control the rotating speed of cylinder and revolutions.
* One drum runs synchronously. Auto stop at timing point, (only for CS-4)
* Single path and double cylinder, synchronous operation and automatic stop.
* The revolution of the drum can be preset at any time, either preset or real data is displayed on the LCD.
* Microprocessor unit is used to control all operations, high accuracy is achieved in testing rotary speed and circle number.


Technical parameters:
Model CS-1 CS-2 CS-3 CS-4
Cylinder Number 2 1
Cylinder Radius Φ286
Cylinder Depth 39mm
Tablet Fall Height 156mm
Rotating Speed 20~100rpm 25 rpm
Rotation Count 5~900 turns 100 turns 5~900 turns 20-900 turns
Consumption 40W 20W 40W
Power Supply AC110 /220V±10%, 50/60Hz
External Size(W*D*H) mm 370*300*340 300*200*340
Package Size(W*D*H) mm 440*400*525 410*295*430
Gross Weight (kg) 12 8
