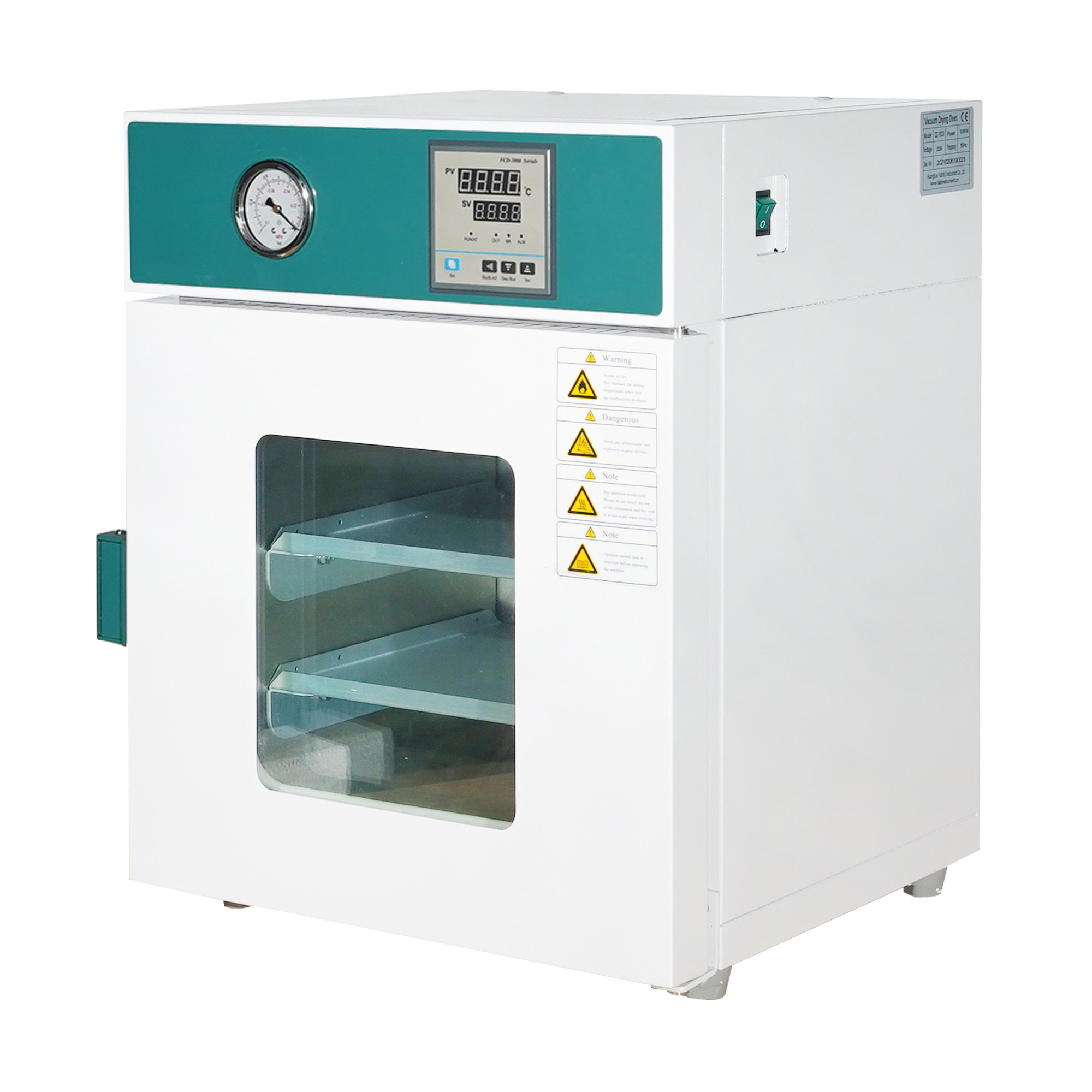

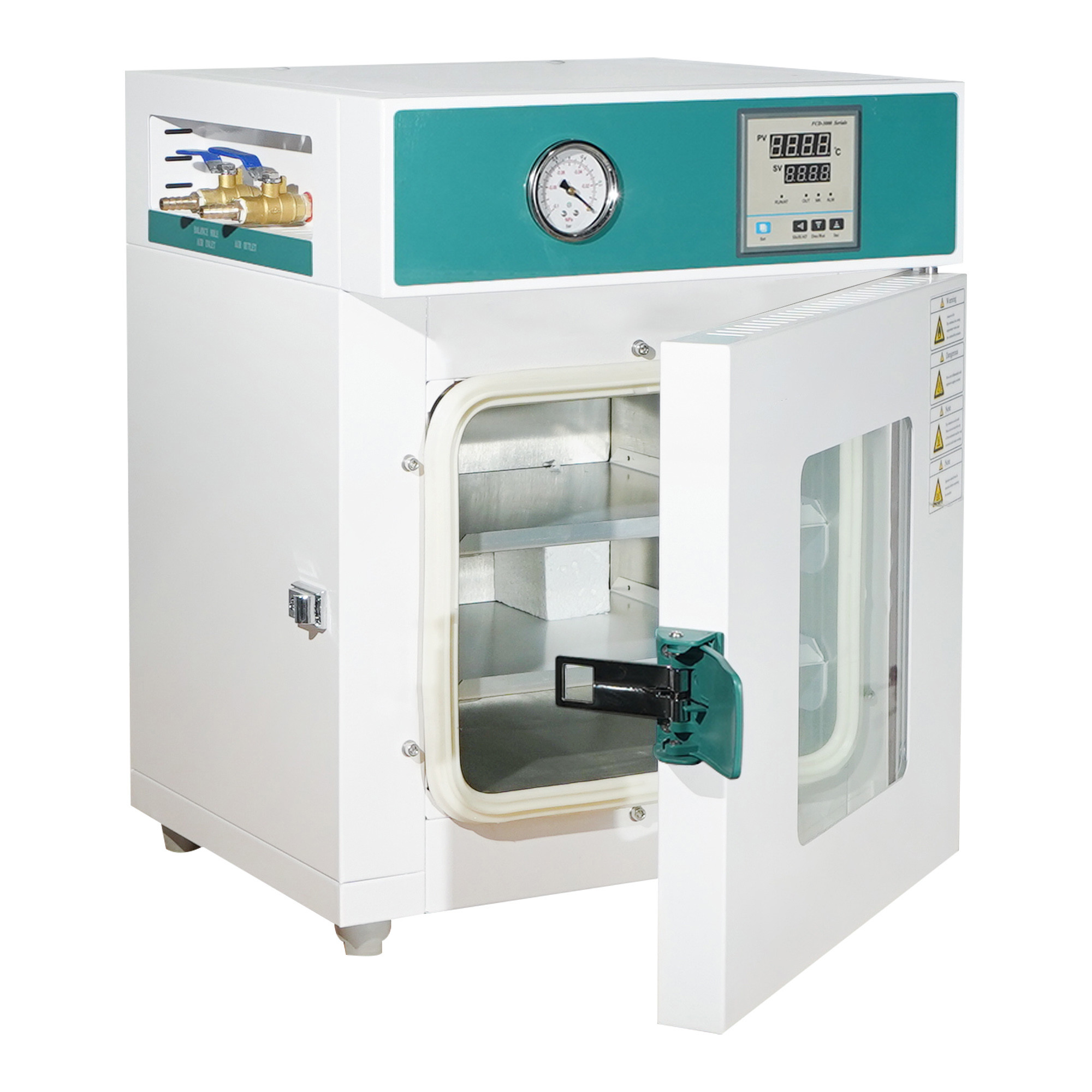

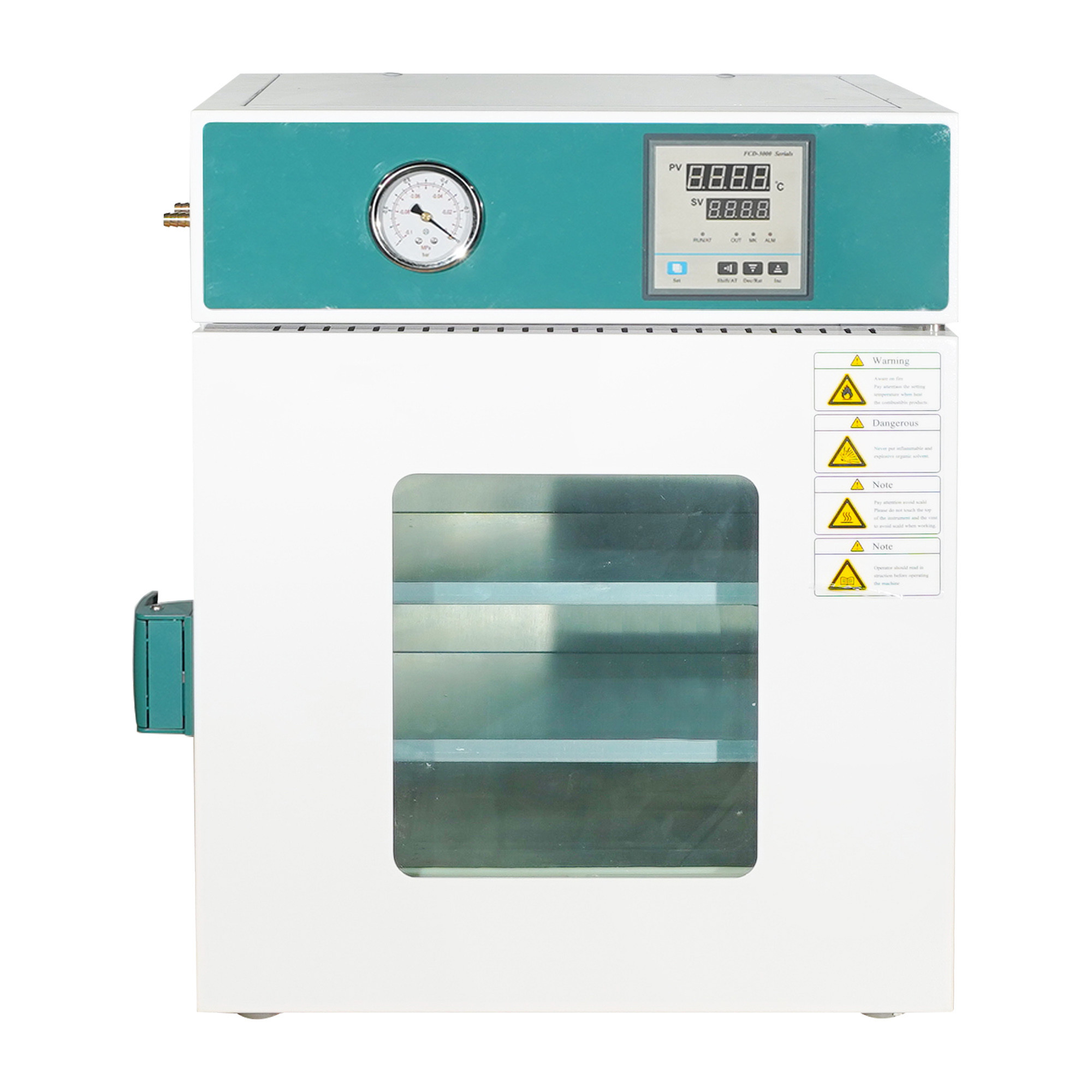

Vacuum Drying Oven

Basic Information
Place of Origin: CHINA
Brand Name: BIOSTELLAR
Certification: CE ISO
Minimum Order Quantity: 1
Packaging Details: Carton case;Wooden case
Delivery Time: 5-8 Work days
Payment Terms: L/C, T/T, Western Union
Product Description

Product Description:



1. 4-sides Heating method, Temperature conduction by shelves, more efficiency.

2. With inflatable port, once-forming thermostability Silica gel Sealant strip, with good tightness

3. Double Observation glass window, inner is explosion - proof glass, outside is resin protection plate, more safety.

4. Fastening handle, convenient for opening and closing.





Model DZ-1A DZ-2AⅡ DZ-3AⅡ
DZ-1BCⅡ DZ-2BCⅡ DZ-3BCⅡ
Heating mode Four walls heat conduction and decompression
Function Temp.
Range
RT+10-250℃
Useful vacuum
degree Range
<133Pa
Temp.
Resolution Ratio
0.1℃
Temp. motion ±1℃
Heating-up
time
80min 100min 120min
Structure Inner Chamber BC model: High quality hairline stainless steel sheet;
A model: Anticorrosion treatment of high strength
galvanized sheet
Outer Shell Cold rolling steel electrostatic spraying exterior
Insulation layer Aluminum silicate fiber
Heater Stainless steel electric heating tube
Observation
window
Bullet proof glass, acrylic exterior protection
Vacuum meter Pointer type, accuracy class 2.5
Nozzle diameter 10mm
Power rating 0.8kW 1.4kW 2.0kW
Controller Temp. control
mode
Two temperature section PID intelligent
Temp. setting
mode
Touch button setting
Temp. display
mode
Measuring temperature: display on the four digital tubes
upper row ; setting temperature: display on the
lower row
Timer 0-9999min(with timing wait function)
Operation function Fixed temperature operation, timing function, auto stop
Additional function Sensor deviation correction, temperature overshoot
self-tuning, internal parameter locking,
power-off parameter memory
Sensor pt100
Safety device Over temperature sound-light alarm
Specification Inner Chamber
size(W*L*H)
(mm)
300*300*270 415*370*340 450*450*450
Exterior size
(W*L*H)(mm)
480*480*606 560*540*680 640*590*780
Packing size
(W*L*H)(mm)
590*550*750 704*620*814 739*700*889
Volume 24L 52L 91L
Number of shelf 2
Load per rack 15kg
Shelf space 100mm 140mm 185mm
50/60HZ)
Current rating
AC220V/3.6A AC220V/6.3A AC220V/9.1A
NW/GW (kg) 42/52 67/92 82/105
Accessory Shelf 2
Shelf frame 4
optional accessories Silica gel connecting pipe, vacuum pump
